Machine type: Scissor lift
Drive: Electrical hydraulic
Lifting capacity: 3000kg
Machine lift height: 960mm
Platform initial height: 115mm
Platform length: 1480mm
Platform width: 480mm
Lifting time: ≤35s
Descent time: ≤35s
Whole machine length: 2020mm
Whole machine width: 1760mm
Power supply: 3/N/PE~380V, 50Hz,16A
Whole machine power: 2.2Kw
Hydraulic oil: 6L corresponds to wearable hydraulic oil
Working temperature: 5-40℃
Working humidity: 30-95%
Noisy: <70dB
Storage temperature: -25℃~55℃
Description:

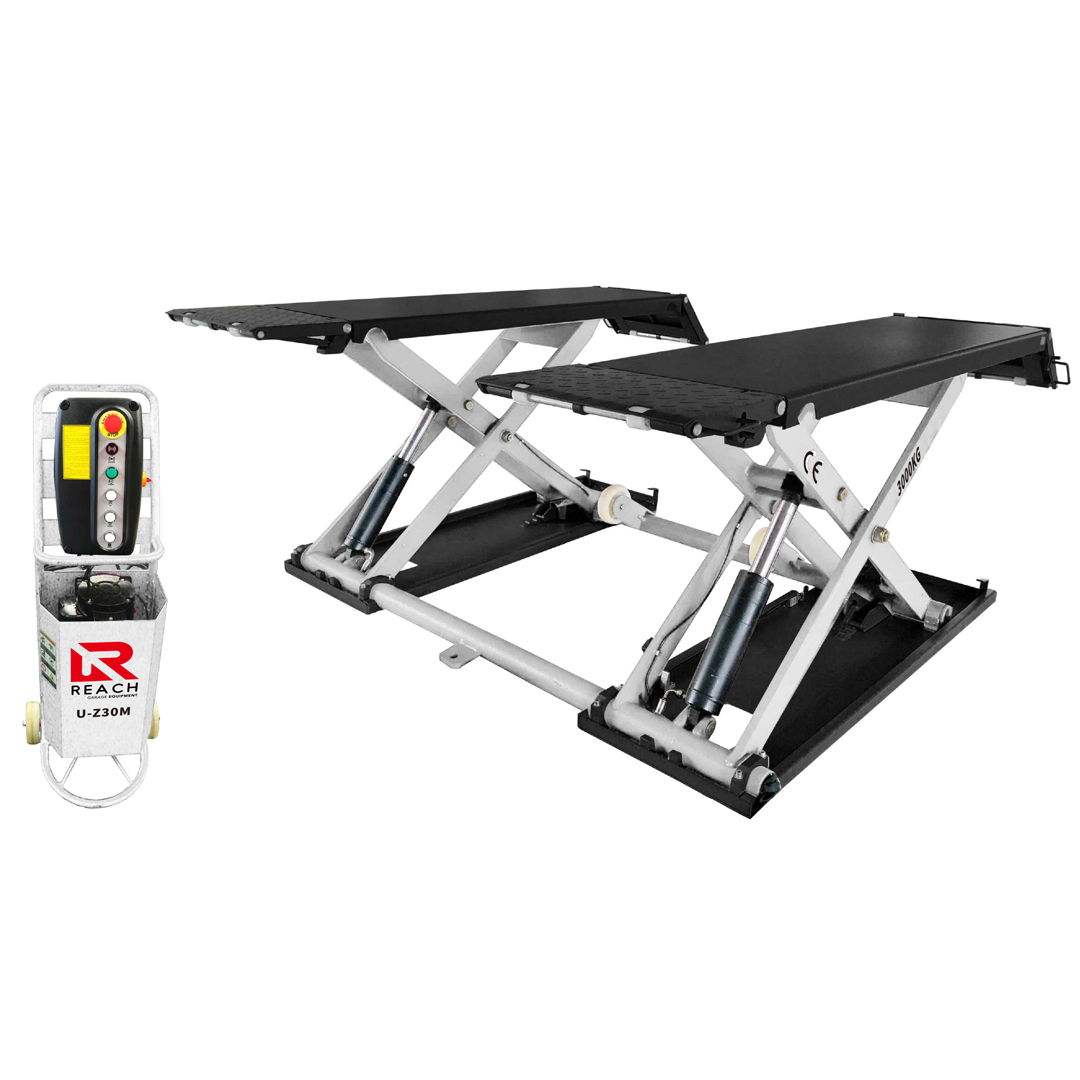

The U-Z30M is a portable 3000kg hydraulic mid-rise scissor frame lift, equipped with single hydraulic cylinders, electrical lock release system desiged to lift cars & 4 x 4's to a comfortable working height of 38". It is the perfect lift for body shops and wheel service specialists that need extra lifting height. This portable lift easily raises a car or SUV to a comfortable working height.The lift comes standard with load bearing flip-up runway extensions, rubber spacer blocks, along with a power unit dolly, lift wheel kit & tow bar for convenient portability feature. The U-Z30M scissor lift is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.
| Specification | |
| air supply | 6-8kg/cm2 |
| capacity | 3Ton |
| dropping speed | 30s |
| length 1 | 2050mm |
| length 2 | 2050mm |
| lifting height | 960mm |
| lifting speed | 30s |
| motor power | 2.2kw |
| noise level | <7dB |
| platform height | 120mm |
| platform lenght | 1460mm |
| platform width | 480mm |
| power supply | 220V |
| width 1 | 1810mm |
| width 2 | 1810mm |
