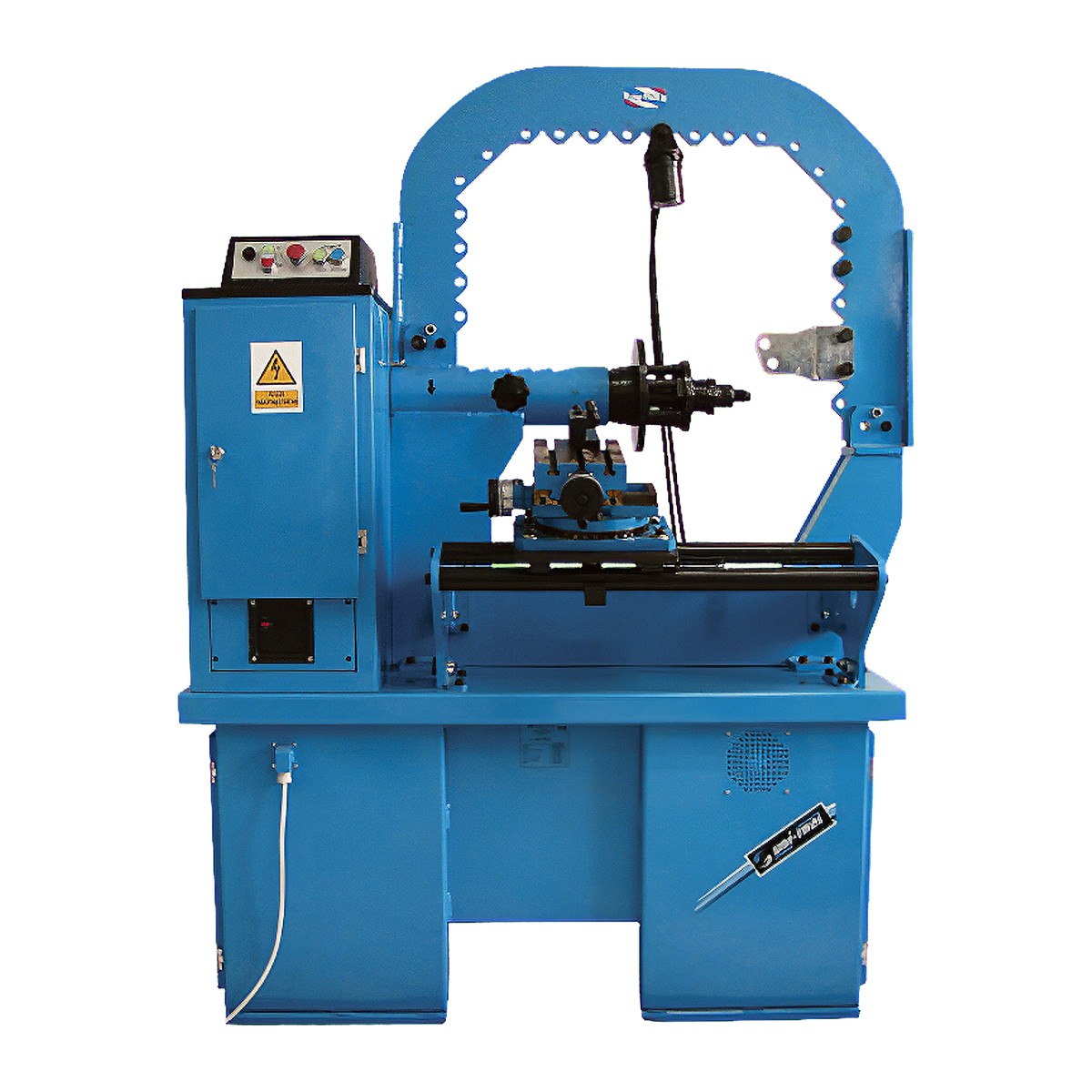

UNI-TROL PO-22H Rim Straightening Machine with Hydraulic Clamp

Rim straightening machine for steel and alloy rims from 13" to 24", with Uni-Trol's quick-release hydraulic clamp for fast, precise and secure rim fixing. A hydraulic cylinder with working end caps in various shapes repairs damage at any point on the rim.

• Quick-release hydraulic rim clamp
• Built-in lathe with adjustable offset
• Reinforced, enlarged frame
• Cylinder holder
• Working end caps in various shapes for different types of rim damage
• Set of centring rings for different centre bore sizes
• Deformation positioning device
• Mounting plates with adjustable set screws
• Pre-straightening lever
• Set of centring rings 54-74 mm (17 pcs) available as an accessory

Specifications

• Rim diameter: 13" to 24"
• Straightening cylinder force: 45 kN
• Max. pump pressure: 200 bar
• Pump motor: 0.55 kW
• Power supply: 3 x 400V / 50Hz
• Noise level: 75 dB
• Weight: 450 kg
