PRICE ON APPLICATION

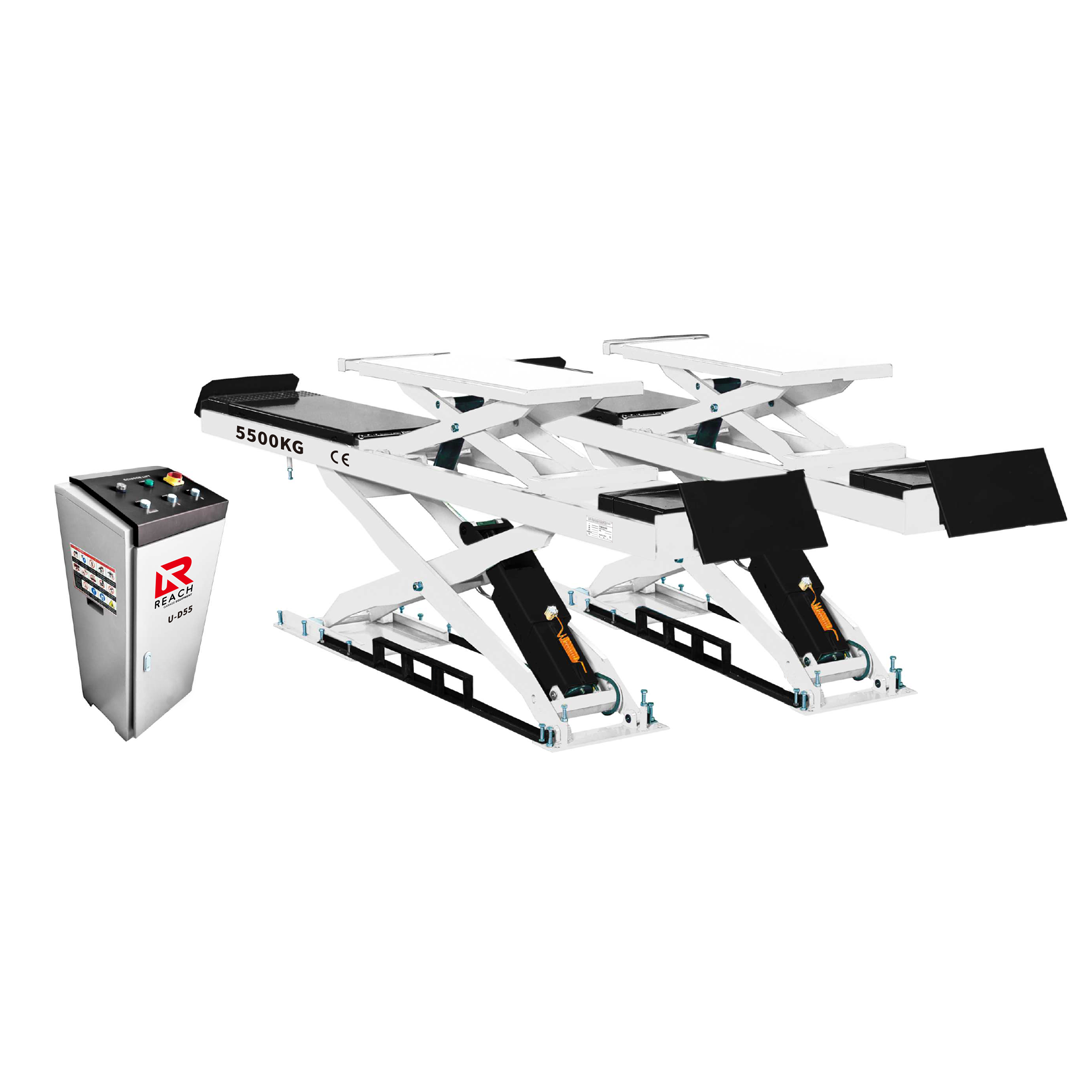

A full-rise double scissor lift with a 5500kg capacity, built for four-wheel alignment work. The main platform lifts to 2200mm, giving comfortable standing room underneath, and a built-in secondary jack adds a further 450mm so wheels-free work needs no separate equipment. The single-sided extendable platform takes everything from small cars to long-wheelbase vans, and the lift sits just 380mm high when fully lowered.
Key features
Specifications
| Model | U-D55 |
| Lifting capacity | 5500kg |
| Lifting height | 2200mm (main platform) / 450mm (jack) |
| Minimum height | 380mm |
| Platform length | 5000mm |
| Machine length | 5500mm |
| Machine width | 2040mm |
| Lifting time | ≤55s |
| Lowering time | ≤55s |
| Power supply | 380V 50Hz |
| Motor power | 2.2kW |
| Noise level | ≤70dB |
A full-rise double scissor lift with a 5500kg capacity, built for four-wheel alignment work. The main platform lifts to 2200mm, giving comfortable standing room underneath, and a built-in secondary jack adds a further 450mm so wheels-free work needs no separate equipment. The single-sided extendable platform takes everything from small cars to long-wheelbase vans, and the lift sits just 380mm high when fully lowered.
Key features
Specifications
| Model | U-D55 |
| Lifting capacity | 5500kg |
| Lifting height | 2200mm (main platform) / 450mm (jack) |
| Minimum height | 380mm |
| Platform length | 5000mm |
| Machine length | 5500mm |
| Machine width | 2040mm |
| Lifting time | ≤55s |
| Lowering time | ≤55s |
| Power supply | 380V 50Hz |
| Motor power | 2.2kW |
| Noise level | ≤70dB |
| Specification | |
| dropping speed | 30s |
| length 1 | 2020mm |
| length 2 | 2020mm |
| lifting capacity | 3Ton |
| lifting height | 960mm |
| lifting speed | 30s |
| motor power | 2.2Kw |
| noise level | <70dB |
| platform height | 105mm |
| platform lenght | 1450mm |
| platform width | 480mm |
| power supply | 220V |
| width 1 | 1760 mm |
| width 2 | 1760 mm |
