PRICE ON APPLICATION

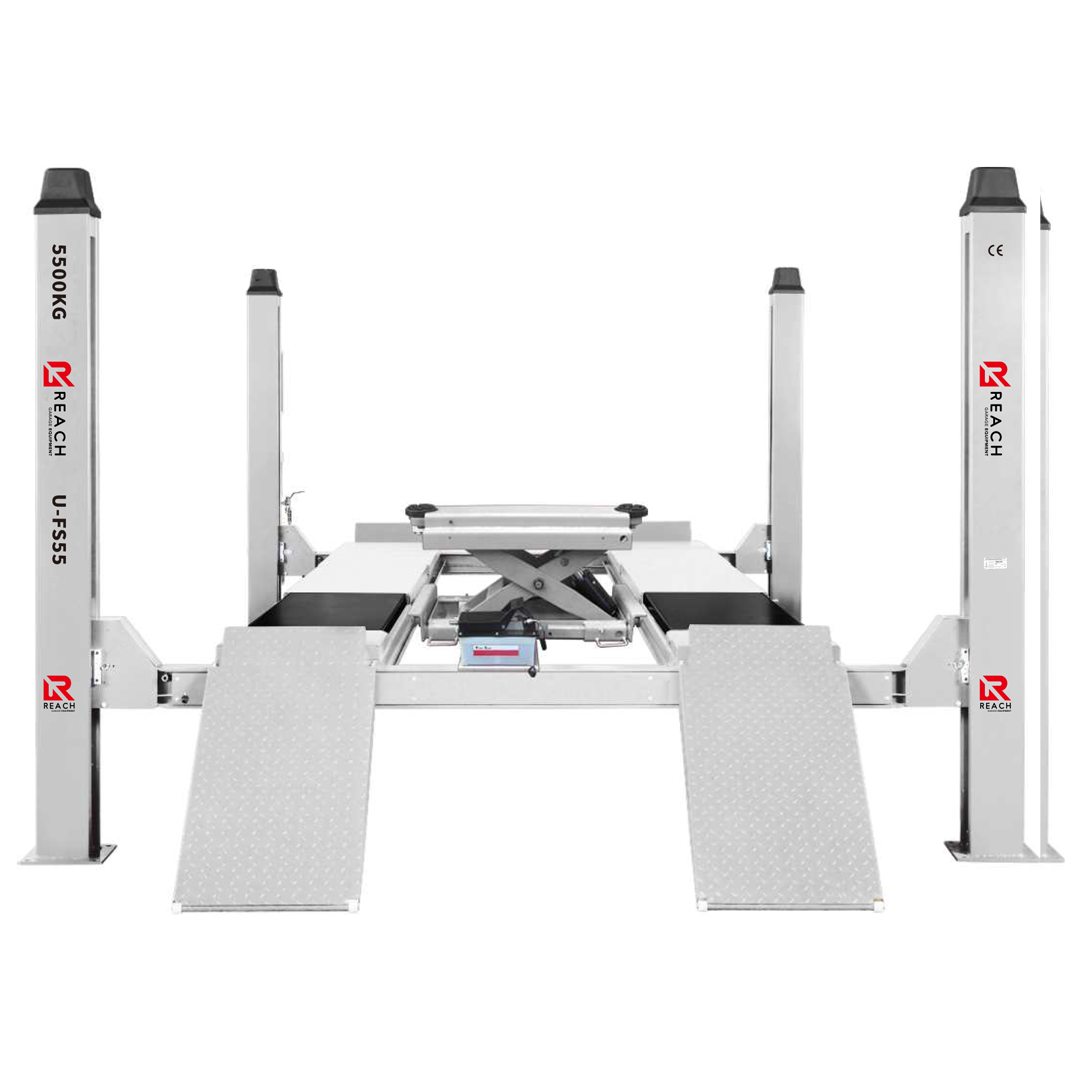

A 5500kg four-post lift supplied as standard with an electric rolling jack, making it a complete four-wheel alignment and general service bay in one. The 5190mm platforms and 1750mm lift height suit commercial vans and long-wheelbase vehicles, and each column carries its own main safety lock and rope-break protection.
Key features
Specifications
| Model | U-FS55 |
| Lifting capacity | 5500kg |
| Lifting height | 1750mm |
| Platform initial height | 250mm |
| Platform length | 5190mm |
| Platform width | 530mm |
| Overall length | 6190mm |
| Overall width | 3340mm |
| Lifting time | ≤55s |
| Lowering time | ≤35s |
| Power supply | 380V 50Hz (3/N/PE, 16A) |
| Motor power | 2.2kW |
| Noise level | ≤70dB |
| Hydraulic oil | 10L anti-wear hydraulic oil |
| Drive | Electro-hydraulic |
Rolling jack
| Lifting capacity | 2000kg / 3000kg |
| Lifting height | 320mm |
| Lifting length | 780–1600mm |
| Wheel distance | 790–1040mm |
| Lifting time | ≤5s (electric) / ≤20s (manual or pneumatic) |
| Lowering time | ≤10s |
A 5500kg four-post lift supplied as standard with an electric rolling jack, making it a complete four-wheel alignment and general service bay in one. The 5190mm platforms and 1750mm lift height suit commercial vans and long-wheelbase vehicles, and each column carries its own main safety lock and rope-break protection.
Key features
Specifications
| Model | U-FS55 |
| Lifting capacity | 5500kg |
| Lifting height | 1750mm |
| Platform initial height | 250mm |
| Platform length | 5190mm |
| Platform width | 530mm |
| Overall length | 6190mm |
| Overall width | 3340mm |
| Lifting time | ≤55s |
| Lowering time | ≤35s |
| Power supply | 380V 50Hz (3/N/PE, 16A) |
| Motor power | 2.2kW |
| Noise level | ≤70dB |
| Hydraulic oil | 10L anti-wear hydraulic oil |
| Drive | Electro-hydraulic |
Rolling jack
| Lifting capacity | 2000kg / 3000kg |
| Lifting height | 320mm |
| Lifting length | 780–1600mm |
| Wheel distance | 790–1040mm |
| Lifting time | ≤5s (electric) / ≤20s (manual or pneumatic) |
| Lowering time | ≤10s |
| Specification | |
| drive through width | 2600 mm |
| lifting capacity | 4000 kg |
| lifting height | 1910mm |
| minimum height | 110 mm |
| motor power | 3kw |
| overall width | 3420 mm |
| total height | 3750 mm |
