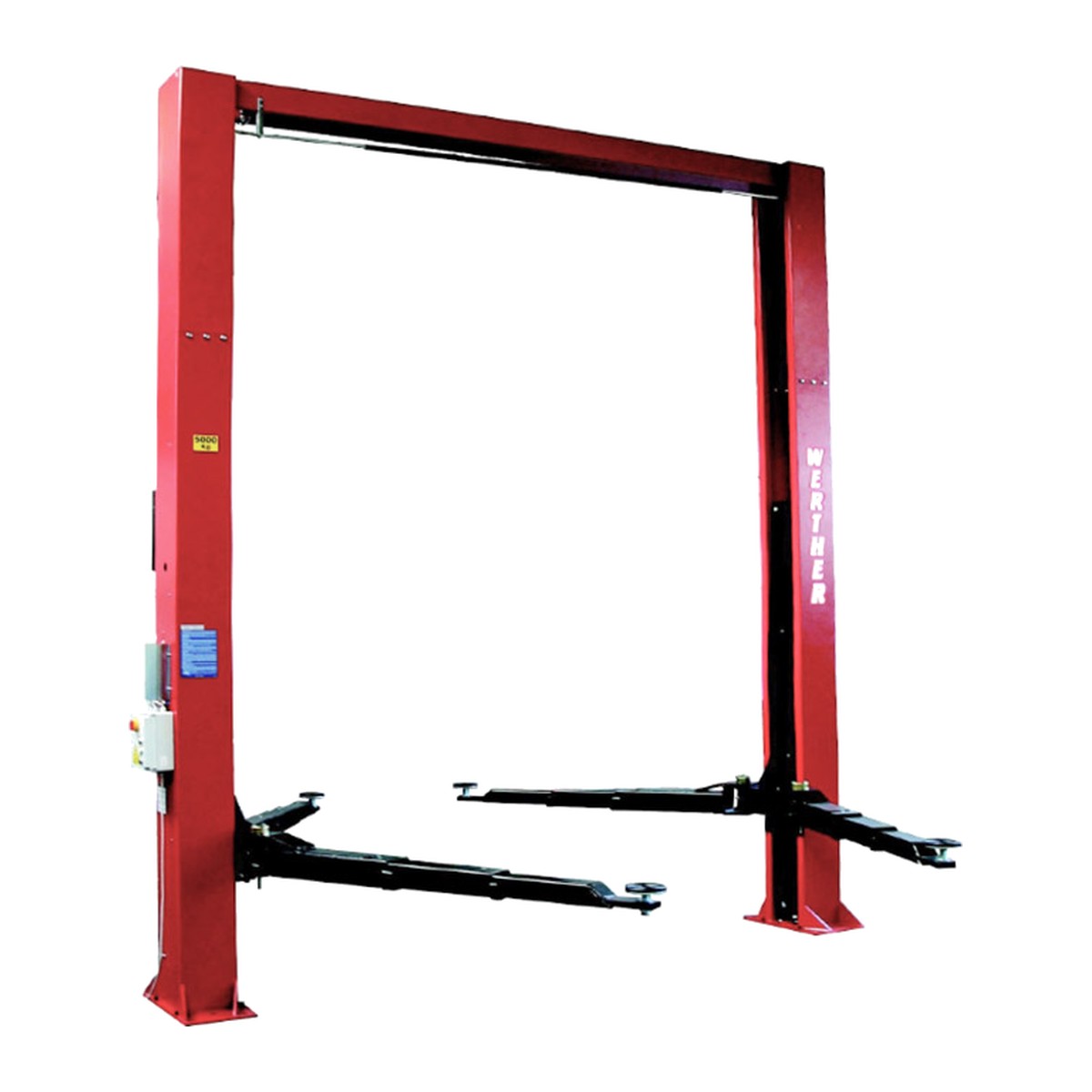

WERTHER 208I/A 4T Two Post Lift

Electro-hydraulic two post lift from Werther, designed and built in Italy. The symmetric design has no baseframe, which leaves the floor clear between the columns, and the four extended three-stage arms handle vans and long wheelbase vehicles as well as standard cars.

• Two maintenance-free lifting rams
• Non-bearing synchronisation cables keep both carriages level, whatever the load distribution
• Four extended three-stage arms
• Automatic arm locking, released at floor level
• Mechanical safety locks with automatic engagement and electro-magnetic release
• Overload valve and safety valve in case of hydraulic hose failure
• Controlled slow descent
• 24V dead man controls

Specifications

• Capacity: 4000 kg
• Lifting height: 1950 mm
• Lifting/lowering time: 35 s
• Motor: 2.2 kW, 3 phase, 230-400V/50Hz
• Weight: 850-950 kg
