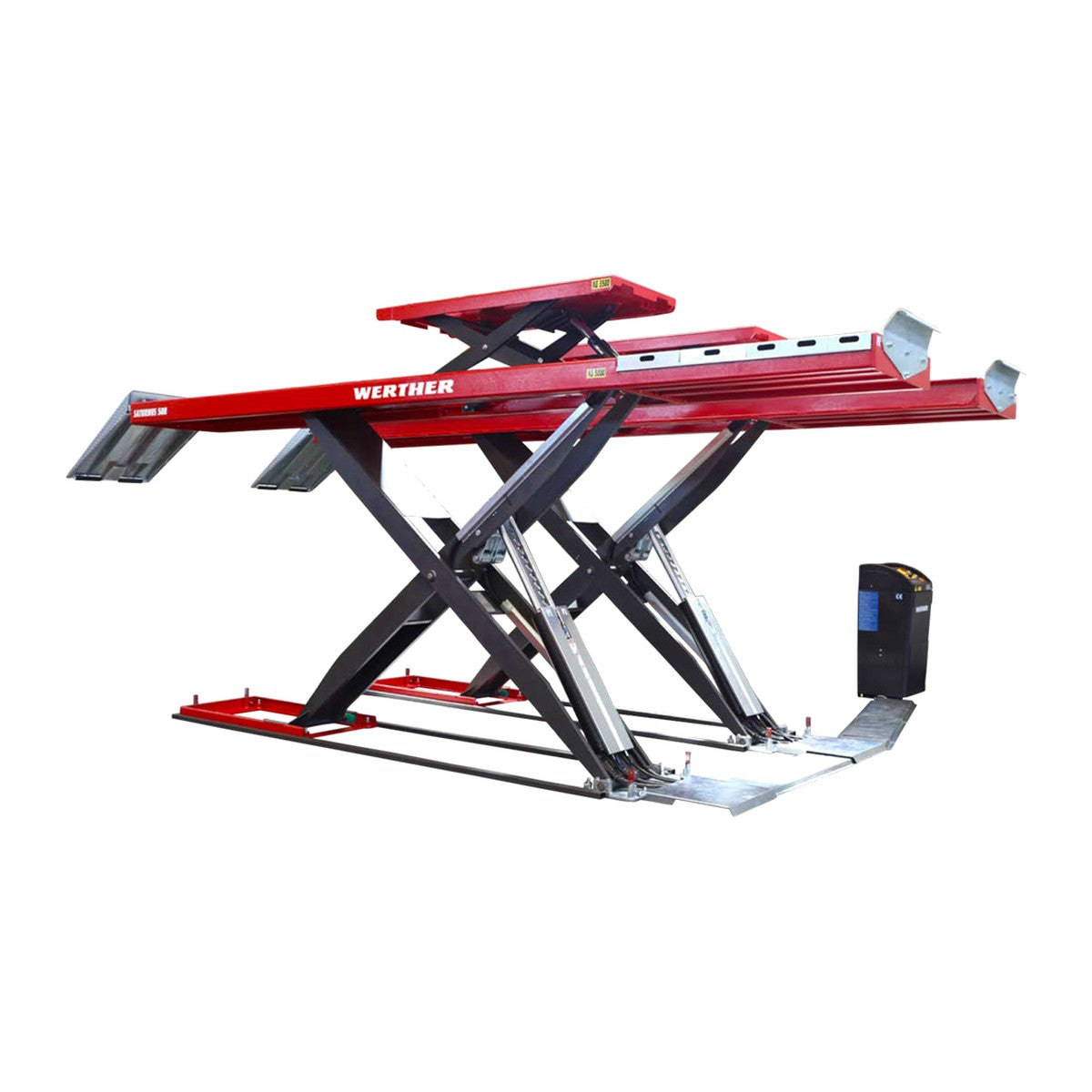

WERTHER SATURNUS 50R ATLT 5T Scissor Lift with Lifting Tables

Extra low profile scissor lift for floor or recessed installation. This ATLT version adds mechanical locks and built-in lifting tables, so wheels can be lifted clear for tyre, brake and suspension work.

• Hydraulic platform synchronisation
• Two independent hydraulic safety circuits
• Mechanical locks between the cylinders keep the platforms perfectly level
• Built-in 3.5 t lifting tables with double cylinders and double extensions for long wheelbase vehicles
• Lateral guides for jacking beams
• Acoustic warning on the last part of descent
• 24V dead man controls
• Set of 4 rubber pads included
• Available as an on-floor kit or a recessed installation kit

Specifications

• Capacity: 5000 kg
• Lifting table capacity: 3500 kg
• Lifting height: 2180 mm (+510 mm with lifting tables)
• Minimum height: 200 mm
• Lifting time: 37 s / lowering time: 35 s
• Motor: 4 kW, 3 phase, 230-400V/50Hz
• Pneumatic feed: 6-8 bar
• Weight: 1900-2700 kg
